Wide Angle Design QR Code Reader 1D 2D Barcode Scan Engine For Ticket Machine

  • 1
  • 2
  • 3

Model Number : HW-1260W

Place of Origin : China

MOQ : 2

Price : 10-13usd/pcs

Payment Terms : T/T

Supply Ability : 30Kpcs per month

Delivery Time : 1-7days

Packaging Details : Vacuum-formed tray + carton box

Product Name : Wide Angle Barcode Scanner Module

Pixel Resolution : 640*480

Scan Speed : 300T/S

View Angle : 76°(H) x54°(V)

Trigger Mode : Manual, Continuous, Motion sensing, Host Mode etc.

Dimension : 21.6(W)*14.2(D)*12(H)mm

Precisions : 1D barcode 4mil

Decode Capabilities : 1D barcode+2D QR code

Advantage : Highly Cost-effective, Wide reading range

Application : HHT,Kiosk,Vending Machine,Ticket Device,etc.

Contact Now

Wide Angle QR Code Reader with Closed Reading Distance
HW-1260W is a cost-effective wide-viewing-angle 2D barcode scanning module featuring a vertical field of view of 76° and horizontal field of view of 54°, making it particularly ideal for short-distance fixed scanning applications.
This module addresses the common issue of barcode alignment difficulty when scanning distance is too long, serving as an ideal solution to improve overall scanning experience. Test results demonstrate that under identical testing conditions, HW-1260W offers a scanning range approximately five times larger than similar products, significantly enhancing barcode reading success rates.
Product Highlights
  • Wide-angle design: Effectively expands scanning coverage, enabling easy barcode reading at close range and solving alignment difficulties
  • Strong recognition capability: Easily reads inverted Datamatrix codes on Russian cigarette packs with excellent compatibility
  • High-performance processor: Equipped with Ingenic processor for stable operation and reliable performance
  • Excellent decoding algorithm: Delivers outstanding decoding performance and processes barcodes covered with reflective films
  • Flexible customization & reasonable price: Supports customized requirements with high cost-performance for diverse application scenarios
Technical Parameters
Parameter Specification
Image Sensor CMOS
Resolution 640×480 pixels
Decoding Capacity Supports paper and screen barcodes including QR, PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, EAN, UPC, Code 39, Code 128, and all normal 1D barcodes
Precision 4mil
Light Source 620nm Visible Red Diode, red LED for illumination
View Angle 76°(H) × 54°(V)
Scan Angle Rotation 360°, tilt ±65°, skew ±65°
Min Contrast 25%
Trigger Mode Manual, Continuous, Motion sensing, Host Mode
Typical DOF EAN13 (10mil) 25-160mm, Datamatrix(10mil) 25-120mm, QR code(20mil) 20-200mm, PDF417(6.88mil) 20-120mm, QR(Alipay) on screen 40-260mm
Interface TTL232, USB(KBW/COM) by 12pin FFC flat cable (0.5mm pitch)
Working Voltage DC 3.3V±0.3V
Current 160mA (working), 20mA (USB standby), 2mA (TTL standby)
Dimensions 21.4(W) × 13.2(D) × 12(H) mm
Weight 2g
Indication LED fill light (can trigger external buzzer and LED indicator)
Working Temperature -20~60℃
Storage Temperature -40~70℃
Humidity 5%-95% (Non-condensing)
Light Brightness 0-100,000 LUX
Product Applications

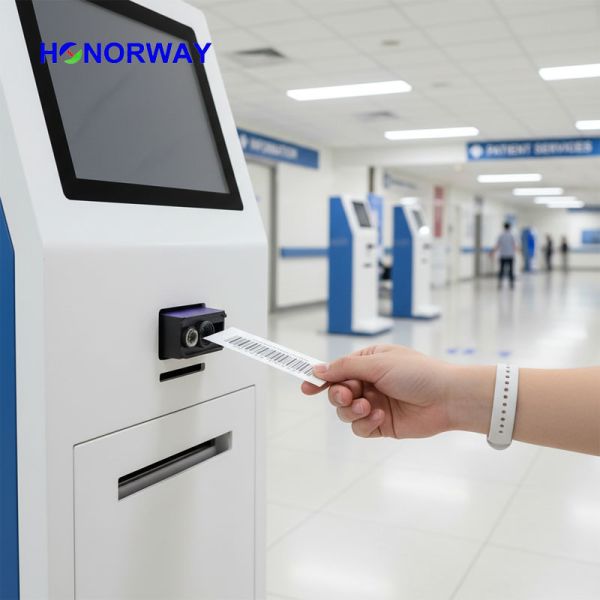

The HW-1260W wide-viewing-angle scanning module is designed for fixed barcode reading scenarios where it is embedded in various self-service terminals. Users simply place the barcode in front of the scanning window to complete identification.
Widely used in many industries and self-service devices, including:
  • Bus payment systems
  • Garbage disposal stations
  • Hospital self-service physical examination report printers
  • Identity verification and security inspection equipment
