1MP Embedded High Density QR Barcode Scan Module For Self Checkout Machine

  • 1
  • 2
  • 3

Brand Name : HONORWAY

Model Number : HW-1960H

Certification : CE ROHS FCC ISO9001

Place of Origin : China

MOQ : 2

Price : 30

Payment Terms : T/T

Supply Ability : 10Kpcs/month

Delivery Time : 3-7days

Product Name : 1MP mirror optics barcode reader module

Resolution : 1280*800pixels

Typical DOF : 0-70mm(5mil code39 10b)

Motion tolerance : 1M/S

Interface : RS232, USB(HID, COM),TTL232

Dimensions : 120*102*55.4mm

Advantage : Zero-distance scan

Application : Decoding high-density QR, Self-checkout Machine for supermarket

Contact Now

HW-1960H 1MP Embedded High Density QR Barcode Scanner Module with Mirror Optics for Self-checkout Machine
1MP Embedded Barcode Scanner with Mirror Optics for Zero-Distance Reading
The HW-1960H is a high-resolution embedded barcode scanner module featuring a 1MP sensor with 1280 x 800 pixel resolution, designed to decode high-density barcodes with exceptional clarity. Its larger scan window simplifies user alignment, while an innovative mirror-based optical path extends the travel distance internally—allowing users to scan from extremely close range, even with the barcode placed directly against the protective window.
Key Features
  • 1280 x 800 imaging sensor for precise decoding of compact, high-density codes
  • Patented mirror reflection design shortens working distance, enabling near-contact scanning
  • Raised scan window aligns flush with device exterior for a clean, professional finish
  • Supports 25 global languages and UTF-8 encoding for flexible character output
  • Comprehensive SDK and driver support for major operating systems
Image Sensor CMOS
Exposure Global shutter
Resolution 1MP 1280*800 pixels
Decoding Capacity Support paper and screen barcodes
2D: QR, MICROQR, PDF417, MICRO PDF417, DATAMATRIX, AZTEC, GS1 Composite etc.
1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 93, Code 128, UCC/EAN 128, Trioptic code39, Code 32, Codebar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, Code 11, Industrial 25, Standard 25, Plessey Matrix 2 of 5 etc. all normal 1D
Precision 4mil
Light Source LED(630nm±10nm)
View Angle 42°(H) x36°(V)
Scan Angle Rotation360°, tilt±55°, skew±55°
Min Contrast 25%
Motion Tolerance 1M/S
Typical DOF 0-70mm(5mil code39 10b) 0-250mm(20mil QR 16b) 0-100mm(6.7mil PDF417 7b) 11-130mm(10mil DM 20b)
Performance may be impacted by bar code quality and environmental conditions
Interface RS232, USB(HID, COM), TTL232
Working Voltage DC 5V
Current 300mA(working) 40mA(standby)
Dimensions 120*102*55.4mm
Weight 175g(without cable)
Indication Buzzer & LED
Working Temperature -20~50℃
Storage Temperature -40~70℃
Humidity 5%-95%(Non-condensing)
Light Immunity 0~100,000Lux
Proven Applications

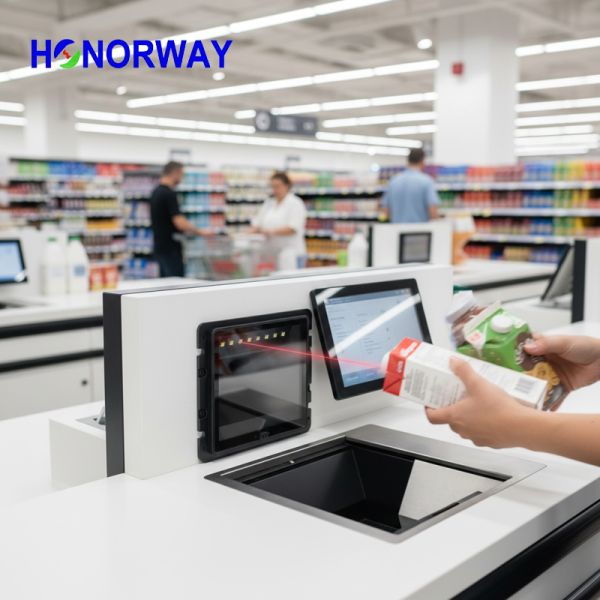

  • Self-Checkout Systems: Deployed in retail chains such as Walmart, Sam's Club, and Rainbow, where consumer-friendly scanning performance reduces checkout queues. The HW-1960H's forgiving scan zone and close-range capability improve first-time scan success rates.
  • Identity Verification Kiosks: Successfully used in Vietnamese ID document readers, where its high-density decoding capability reads complex QR codes that other modules fail to process, with Vietnamese keyboard output for special characters.
  • Metro Turnstiles: Wide-angle optics and motion tolerance enable fast, intuitive scanning without requiring users to adjust phone angle or distance—ideal for high-traffic transit environments.
